Build or replace a compatible small feed-shredding setup with a four-blade cutting head, long shaft, bearing base, and mounting hardware. The curved blades are designed for chopping suitable grass and soft produce when the kit is correctly installed in a secured, guarded system.
Product details

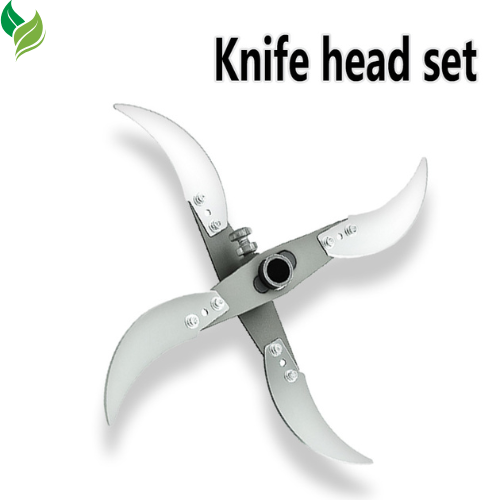

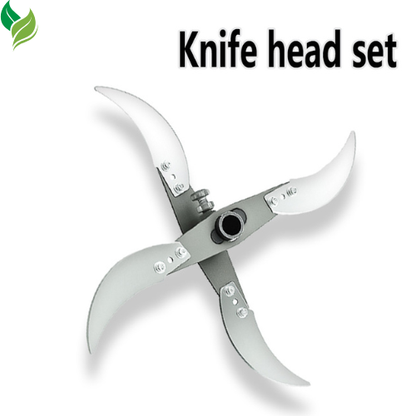

- Blade count: 4 curved cutting blades
- Blade material: stainless steel
- Center mounting hole (bore): approximately 12 mm / 0.47 in, roughly 15/32 in
- Compatible shaft range stated for this kit: approximately 10-12 mm / 0.39-0.47 in
- Shaft length shown: approximately 50 cm / 19.7 inches
- Adjustable assembled cutting diameter: approximately 24-26 cm / 9.4-10.2 inches

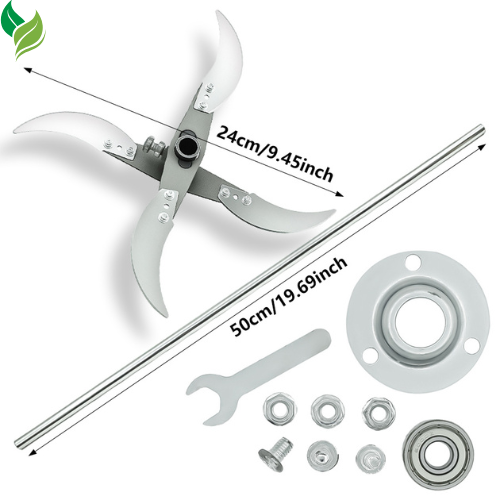

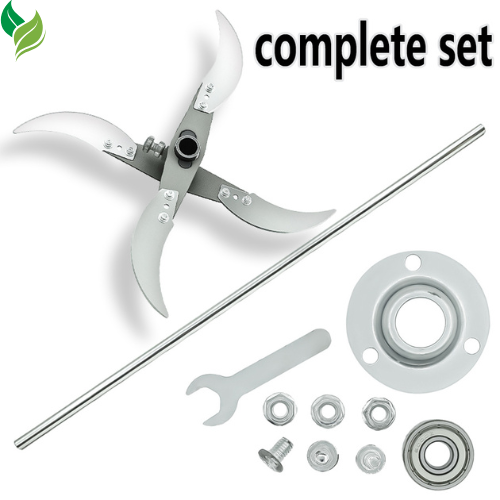

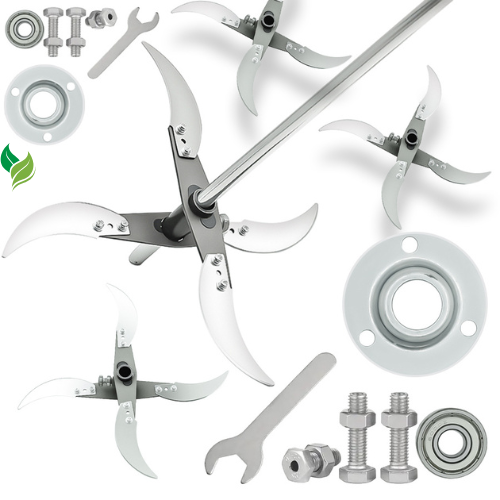

- Included parts: blade head, shaft, bearing/base plate, wrench, nuts, bolts, and mounting hardware shown in the product images
- Power tool, motor, container, enclosure, and safety guard are not included
Check compatibility before ordering
This is not a universal-fit attachment. Compare the center mounting hole, shaft diameter, threads, hardware, rotation direction, rated speed, torque, container clearance, and guard requirements with your equipment documentation. Do not install the kit when any measurement or operating specification is unknown.
Installation and safety
- Assembly should be completed by a qualified adult familiar with rotating machinery.
- Use a rigid, secured container and a complete enclosure or guard designed for the operating speed.
- Disconnect the power source before installation, adjustment, cleaning, or inspection.
- Wear approved eye and face protection, cut-resistant work gloves during handling, hearing protection, long clothing, and closed-toe footwear.
- Keep hands, tools, loose clothing, people, and animals away from the cutting area.
- Never reach into the container while connected to power, even when the blades appear stopped.
- Stop immediately if the unit vibrates, loosens, bends, or makes unusual noise.
Sharp blade warning: the exposed blades can cause severe injury. This kit is not a toy and is not intended for handheld, unguarded operation. Follow the power equipment and enclosure manufacturers' instructions at all times.
Care
- Remove residue only after disconnecting the power source.
- Wash and dry all metal parts completely after use.
- Inspect blades, fasteners, shaft, and bearing before every session.
- Replace damaged, loose, cracked, bent, or heavily worn parts before operation.
Frequently asked questions
What does a 12 mm bore mean?
The bore is the diameter of the center mounting hole in the blade assembly. A 12 mm bore is about 0.47 inch, or roughly 15/32 inch. It does not describe the blade length. Measure your machine shaft and compare all mounting specifications before ordering.
Will it fit every drill or motor?
No. Fit and safe operation depend on the power source, chuck or shaft connection, speed, torque, guard, and enclosure. Verify every specification before use.
What materials can it process?
Use only for suitable soft plant material within the limits of a compatible, guarded setup. Do not process stones, metal, wood, bone, hard objects, or material that may hide debris.
